GelSight Max
High-precision surface metrology.
Wherever you need it.
GelSight Max
Highest-resolution GelSight handheld for demanding surface metrology
GelSight Max combines nanometre-scale Z-axis accuracy with a 14.6 × 8.3 mm field of view, delivering precise, repeatable 3D surface data in seconds across any material, finish or lighting condition.
Choose Max when measurement performance is the priority.
GelSight's highest-resolution handheld combines exceptional Z-axis accuracy, advanced roughness measurement and a generous field of view.
Maximum detail.
Real metrology.
Right at the part.
01 ULTRA-HIGH ACCURACY
300 nm + 4% Z Accuracy
Quantify micro-scale defects, surface features and height variation with GelSight's highest-performance handheld measurement platform.
02 SURFACE ROUGHNESS
0.2 to 20 µm Ra
Measure surface and profile roughness directly on the component, without cutting samples or moving the part to a dedicated metrology laboratory.
IN-SITU SURFACE METROLOGY
Bring the measurement to the part
Max takes high-resolution surface metrology out of the laboratory and puts it directly into production, inspection and maintenance workflows.

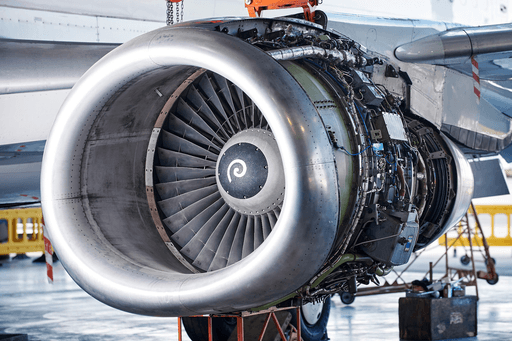

Measure critical surfaces on aircraft components, tooling, manufactured parts, welds and precision assemblies without disassembly, cross-sectioning or transporting the component for analysis.
MEASUREMENT, AUTOMATION & TRACEABILITY
From surface condition to documented decision
Max converts the surface into NIST-traceable 3D measurement data, replacing subjective inspection with quantified, documented results.
Measure defects and roughness, apply defined pass/fail criteria and generate a permanent digital record. GelSight workflows support Operator Mode, batch analysis, external triggering and immediate report generation, helping standardise inspection across operators and locations.
Real-world measurement results showing how GelSight Max can transform high-resolution surface metrology workflows.
ON-SITE EVALUATION
PROFILE & SURFACE ROUGHNESS
100 measurements in just 3 hours
GelSight Max was used to capture 100 profile and surface roughness measurements across metal components during a single on-site evaluation.
The customer estimated the same measurement programme would have required 340 hours using its existing confocal microscope workflow.
100
Surface measurements
3 hours
Total GelSight workflow
337 hours
Time saving
GelSight Max Specifications
Built for high-accuracy handheld surface measurement
ON-SITE DEMONSTRATIONS ACROSS THE UAE & GCC
See GelSight Max working on your own parts
We bring GelSight Max to your facility and demonstrate live 3D surface measurement, roughness analysis and defect quantification on your own components.
